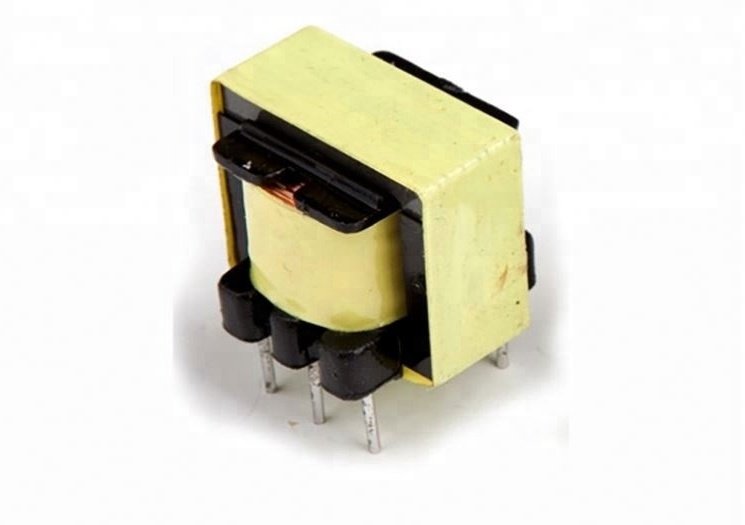

FEATURES:
- High inductance
- Small impedance
- Large working current

APPLICATION:
- various switch type power Usually supplies
- energy saving lamps
- audio frequency apparatus
- communication apparatus

SPECIFICATIONS:
- Insulation: >10MΩ @ 100VDC
- Breakdown voltage:100VAC HIPOT for 1 minute
- Maximum output: 75mW
- D.C. resistance tolerance: ±15%
- Impedance variation:±10% @ 1KHz

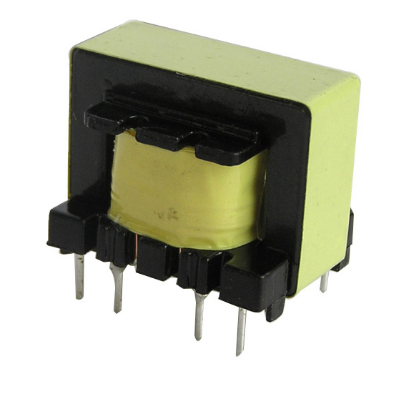

FEATURES:
- Low Loss
- Low Temperature Rise
- Large Transmission
- Stable performance

APPLICATION:
- various switch type power Usually supplies
- energy saving lamps
- audio frequency apparatus
- communication apparatus

SPECIFICATIONS:

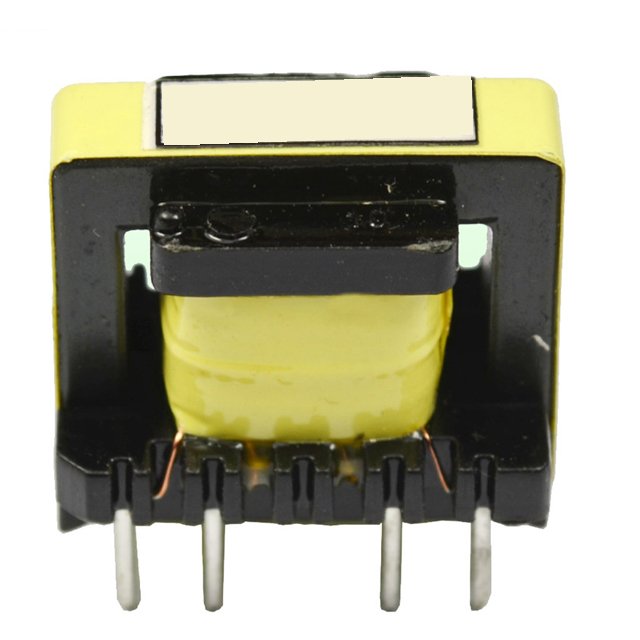

- Frequency: 1KHz -200KHz ei22 transformer for 19v
- Output Power: 1W to 10,000W
- Output Voltage: 0.5 to 10,000Vrms
- Output Current: 0.01A to 1000A

FEATURES:
- Low Loss
- Low Temperature Rise
- Large Transmission
- Stable performance

APPLICATION:
- Suitable for AC/DC inverter or DC/AC converter
- Switching power transformer/ Pulse transformer
- energy saving lamps
- audio frequency apparatus

SPECIFICATIONS:
- Insulation: >10MΩ @ 100VDC
- Breakdown voltage:100VAC HIPOT for 1 minute
- Maximum output: 75mW
- D.C. resistance tolerance: ±15%
- Impedance variation:±10% @ 1KHz
